About Lyra Test Points

2025-03-26 8:39

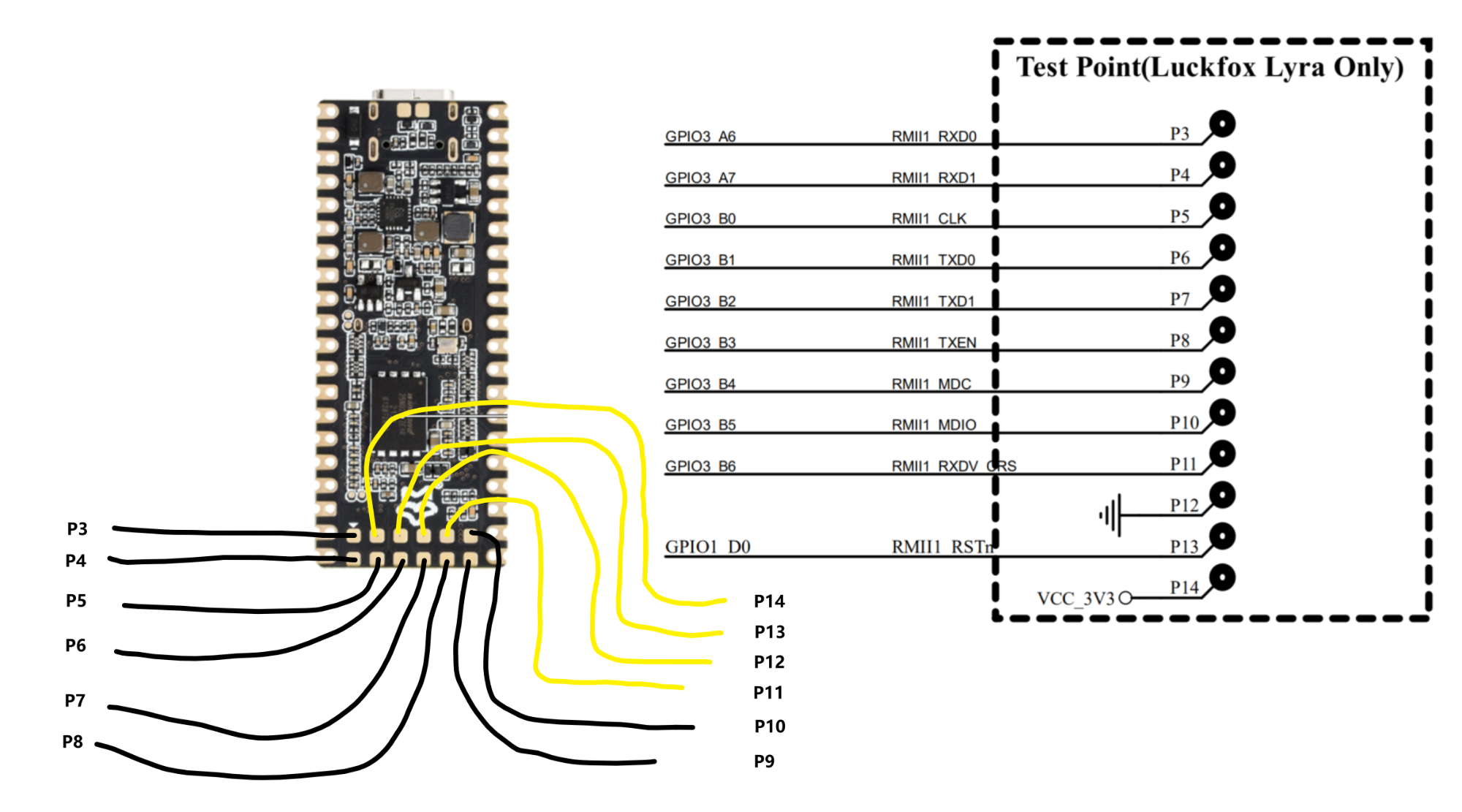

Hello, based on the schematic and images you provided, I have marked the test points. Could you please verify if these markings are correct?

2025-03-27 6:57

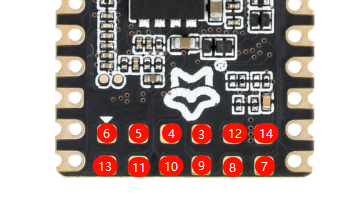

Hello, the location of the test point of Luckfox Lyra is shown in the picture

2025-03-27 10:45

Crocodile wrote: ↑2025-03-27 6:57 Hello, the location of the test point of Luckfox Lyra is shown in the picture

Thanks!
