Code: Select all
/***************************** CSI ********************************/
&csi2_dphy_hw {
status = "okay";
};
&csi2_dphy0 {
status = "okay";
ports {
#address-cells = <1>;
#size-cells = <0>;
port@0 {
reg = <0>;
#address-cells = <1>;
#size-cells = <0>;
csi_dphy_input0: endpoint@0 {
reg = <0>;
remote-endpoint = <&hdmiin_out0>;
data-lanes = <1 2>;
};
};
port@1 {
reg = <1>;
#address-cells = <1>;
#size-cells = <0>;
csi_dphy_output: endpoint@0 {
reg = <0>;
remote-endpoint = <&mipi_csi2_input>;
};
};
};
};
&mipi0_csi2 {
status = "okay";
ports {
#address-cells = <1>;
#size-cells = <0>;
port@0 {
reg = <0>;
#address-cells = <1>;
#size-cells = <0>;
mipi_csi2_input: endpoint@1 {
reg = <1>;
remote-endpoint = <&csi_dphy_output>;
};
};
port@1 {
reg = <1>;
#address-cells = <1>;
#size-cells = <0>;
mipi_csi2_output: endpoint@0 {
reg = <0>;
remote-endpoint = <&cif_mipi_in>;
};
};
};
};
&i2c4 {
status = "okay";
clock-frequency = <400000>;
pinctrl-names = "default";
pinctrl-0 = <&i2c4m2_xfer>;

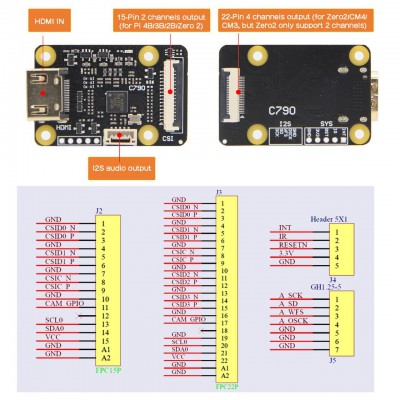

tc358743: tc358743@0f {
compatible = "toshiba,tc358743";
status = "okay";
reg = <0x0f>;
clocks = <&hdmi_osc>;
clock-names = "refclk";
reset-gpios = <&gpio3 RK_PC5 GPIO_ACTIVE_LOW>;
rockchip,camera-module-index = <0>;
rockchip,camera-module-facing = "back";
rockchip,camera-module-name = "TC358743XBG";
rockchip,camera-module-lens-name = "NC";
port {
hdmiin_out0: endpoint {
remote-endpoint = <&csi_dphy_input0>;
data-lanes = <1 2 3 4>;
clock-noncontinuous;
link-frequencies = /bits/ 64 <297000000>;
};
};
};
};

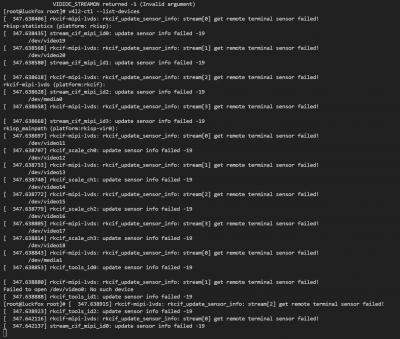

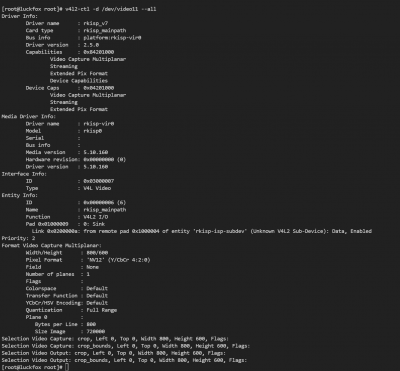

&rkcif {
status = "okay";
};
&rkcif_mipi_lvds {
status = "okay";
pinctrl-names = "default";
pinctrl-0 = <&mipi_pins>;
port {
/* MIPI CSI-2 endpoint */
cif_mipi_in: endpoint {
remote-endpoint = <&mipi_csi2_output>;
};
};
};
