libwebsockets异常断连(LWS_CALLBACK_CLIENT_CLOSED)

• XUESI LI

  Posts: 6

  Joined: 2024-10-29 9:20

  2025-01-14 15:34

  用arm-rockchip交叉编译工具链把一个libwebsockets的客户端程序编译到RV1106上，程序运行会自动断连。而完全相同的代码，gcc编译为X86可执行程序则运行完全正常。
  程序代码如下：

  Code: Select all

  #include <pthread.h>
  #include <stdio.h>
  #include <stdlib.h>
  #include <string.h>
  #include <libwebsockets.h>
  #include <unistd.h>

  static struct lws *wsi = NULL;
  static int established = 0;
  static int isBreak = 0;
  static int stop = 0;

  int UnmarshalURL(const char *_url, char *_protocol, char *_host, int *_port, char *path)
  {
      char url[256];
      strncpy(url, _url, sizeof(url) - 1);
      url[sizeof(url) - 1] = '\0';

      char *pslash = strstr(url, "//");
      if (pslash)
      {
          strncpy(_protocol, url, pslash - url);
          _protocol[pslash - url] = '\0';
          strcpy(url, pslash + 2);
      }

      pslash = strchr(url, ':');
      if (!pslash)
      {
          *_port = -1;
          pslash = strchr(url, '/');
          if (!pslash)
          {
              strcpy(_host, url);
          }
          else
          {
              strncpy(_host, url, pslash - url);
              _host[pslash - url] = '\0';
              strcpy(path, pslash);
          }
      }
      else
      {
          strncpy(_host, url, pslash - url);
          _host[pslash - url] = '\0';
          strcpy(url, pslash + 1);
          pslash = strchr(url, '/');
          if (!pslash)
          {
              *_port = atoi(url);
          }
          else
          {
              char portStr[16];
              strncpy(portStr, url, pslash - url);
              portStr[pslash - url] = '\0';
              *_port = atoi(portStr);
              strcpy(path, pslash);
          }
      }
      return 0;
  }

  static int IsfirstMsg = 1;
  static int DeviceId = 1;
  static char writeBuffer[128];

  int ws_callback(struct lws *_wsi, enum lws_callback_reasons _reasons, void *_user, void *_in, size_t _len)
  {
      char buffer[2560] = {0};
      int len = 0;

      switch (_reasons)
      {
      case LWS_CALLBACK_CLIENT_ESTABLISHED:
          printf("Connection established\n");
          lws_callback_on_writable(_wsi);
          break;
      case LWS_CALLBACK_CLIENT_CLOSED:
          isBreak = 1;
          printf("Connection closed\n");
          break;
      case LWS_CALLBACK_CLIENT_CONNECTION_ERROR:
          printf("Connection error\n");
          break;
      case LWS_CALLBACK_CLIENT_RECEIVE:
          memcpy(buffer, _in, _len);
          printf("Received from server: %s\n", buffer);
          if (strcmp(buffer, "openCamera") == 0)
          {
              printf("Opening camera...\n");
              strcpy(writeBuffer, "CameraOK");
              lws_callback_on_writable(_wsi);
          }
          usleep(1000 * 1000);
          break;
      case LWS_CALLBACK_CLIENT_WRITEABLE:
          if (stop)
              break;
          if (IsfirstMsg)
          {
              snprintf(writeBuffer, sizeof(writeBuffer), "id:%d", DeviceId);
              IsfirstMsg = 0;
          }
          printf("Writing data: %s\n", writeBuffer);
          len = lws_write(_wsi, (unsigned char *)writeBuffer, strlen(writeBuffer), LWS_WRITE_TEXT);
          printf("Write length: %d\n", len);
          break;
      default:
          break;
      }
      return 0;
  }

  void *heartbeat_thread_func(void *arg)
  {
      while (1)
      {
          if (!IsfirstMsg)
          {
              strcpy(writeBuffer, "beat");
              lws_callback_on_writable(wsi);
          }
          sleep(30);
      }
      return NULL;
  }

  int main(int argc, char **argv)
  {
      if (argc < 2 || argc > 3)
      {
          printf("Usage: %s <url> [device_id]\n", argv[0]);
          return -1;
      }

      char protocol[16] = {0}, host[128] = {0}, path[128] = {0};
      int port = 0;

      UnmarshalURL(argv[1], protocol, host, &port, path);

      if (argc == 3)
          DeviceId = atoi(argv[2]);
      else
          DeviceId = 1;

      int ssl = (strcmp(protocol, "wss") == 0) ? 1 : 0;

      struct lws_context_creation_info info = {0};
      struct lws_client_connect_info ci = {0};
      struct lws_context *context;

      struct lws_protocols protocols[] = {
          {"ws-client", ws_callback, 0, 5120},
          {NULL, NULL, 0, 0}
      };

      info.protocols = protocols;
      info.port = CONTEXT_PORT_NO_LISTEN;
      info.options = ssl ? LWS_SERVER_OPTION_DO_SSL_GLOBAL_INIT : 0;

      context = lws_create_context(&info);
      if (!context)
      {
          printf("Failed to create context\n");
          return -1;
      }

      ci.context = context;
      ci.address = host;
      ci.port = port;
      ci.path = path;
      ci.host = ci.address;
      ci.origin = ci.address;
      ci.ssl_connection = ssl ? (LCCSCF_USE_SSL | LCCSCF_ALLOW_SELFSIGNED) : 0;
      ci.protocol = protocols[0].name;
      ci.pwsi = &wsi;

      lws_client_connect_via_info(&ci);

      pthread_t thread;
      if (pthread_create(&thread, NULL, heartbeat_thread_func, NULL) != 0)
      {
          printf("Failed to create heartbeat thread\n");
          return -1;
      }

      while (!isBreak)
      {
          lws_service(context, 500);
      }

      lws_context_destroy(context);
      return 0;
  }


  运行效果：

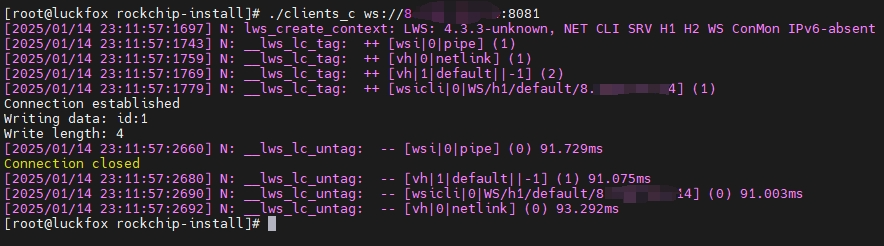

  rv1106上运行异常

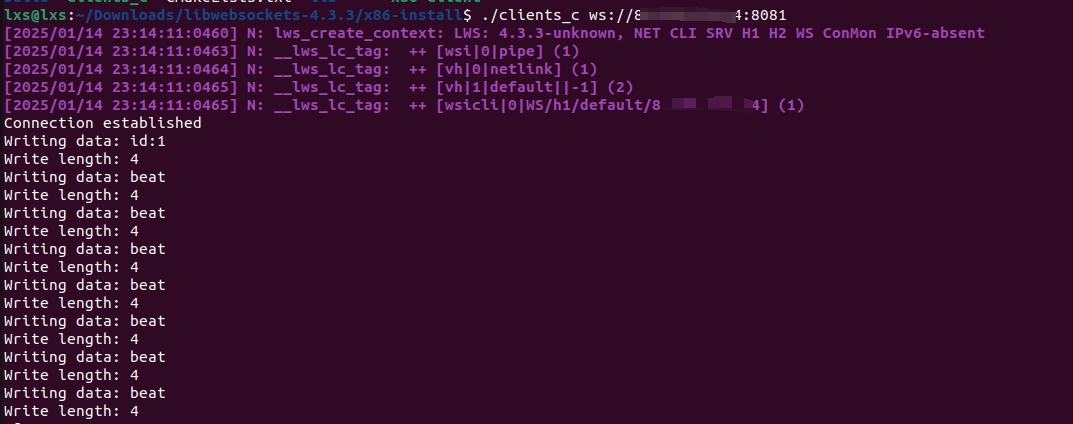

  ubuntu上运行正常

  由于rv1106上的程序可以正常执行，也正常退出，应该不是编译器有问题。rv1106的系统时间也校正了，不会是时间不一致导致无法建立ws连接。问题可能出在哪里？
