关于RKRTSP推流方法结合YOLOV5物体检测无法显示推理结果问题

• chenmodegaoyang

  Posts: 49

  Joined: 2024-02-06 8:03

  2024-02-23 6:38

  我运用了下面的RTSP人脸识别demo（推流延迟略大）和yolov5与opencv mobile不断推理输出物体识别demo（无RTSP推流）进行了结合：



  想要实现yolov5的物体识别快速推理输出并且RTSP推送处理后画面，于是我在第二个demo下的main.cc中加入了第一个demo中RTSP推流逻辑，并且添加了多的RTSP库的那个操作修改了CMAKElist等成功编译并生成了项目，但是放到板子上运行没有推理结果打印并且板子输出这个提示，想要求助该如何解决才能实现这个demo的推流。

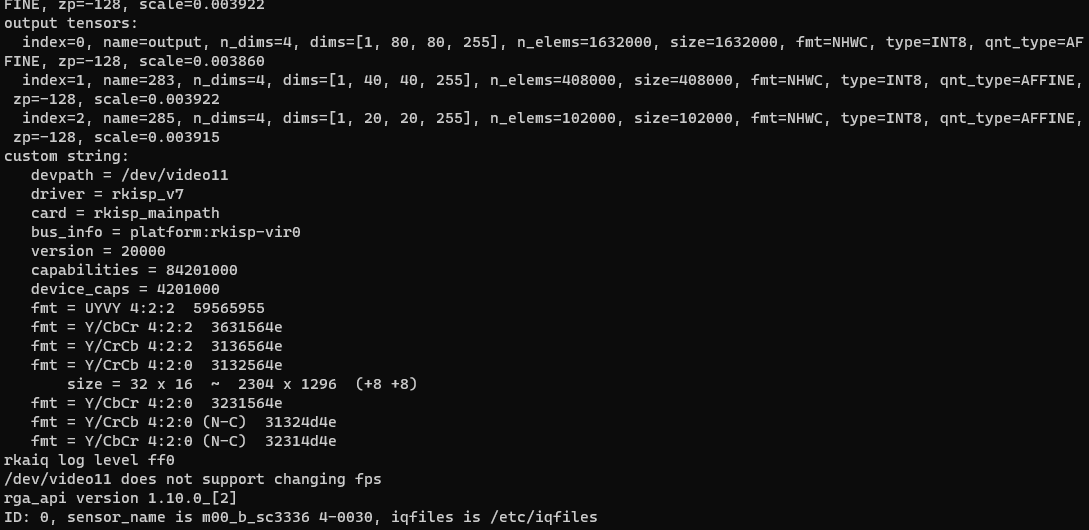

  板子输出如下所示

  ，我的main.cc代码修改成为了这样

  Code: Select all

  // Copyright (c) 2021 by Rockchip Electronics Co., Ltd. All Rights Reserved.
  //
  // Licensed under the Apache License, Version 2.0 (the "License");
  // you may not use this file except in compliance with the License.
  // You may obtain a copy of the License at
  //
  //     http://www.apache.org/licenses/LICENSE-2.0
  //
  // Unless required by applicable law or agreed to in writing, software
  // distributed under the License is distributed on an "AS IS" BASIS,
  // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  // See the License for the specific language governing permissions and
  // limitations under the License.

  /*-------------------------------------------
                  Includes
  -------------------------------------------*/
  #include "rknn_api.h"

  #include <float.h>
  #include <stdio.h>
  #include <stdlib.h>
  #include <string.h>
  #include <sys/time.h>
  #include <vector>

  #include <fcntl.h>
  #include <termios.h>
  #include <unistd.h>

  #include <assert.h>
  #include <errno.h>
  //#include <fcntl.h>
  #include <getopt.h>
  #include <pthread.h>
  #include <signal.h>
  #include <stdbool.h>
  //#include <stdio.h>
  //#include <stdlib.h>
  //#include <string.h>
  #include <sys/poll.h>
  //#include <time.h>
  //#include <unistd.h>
  //#include <vector>
  #include "rtsp_demo.h"
  #include "sample_comm.h"
  #include "retinaface.h"

  #include "postprocess.h"


  // #define STB_IMAGE_IMPLEMENTATION
  // #include "stb/stb_image.h"
  // #define STB_IMAGE_RESIZE_IMPLEMENTATION
  // #include <stb/stb_image_resize.h>

  //Opencv
  #include <opencv2/core/core.hpp>
  #include <opencv2/highgui/highgui.hpp>
  #include <opencv2/imgproc/imgproc.hpp>

  #include <unistd.h>   // sleep()

  #include <stdio.h>
  #include <stdlib.h>
  #include <sys/types.h>
  #include <sys/stat.h>

  #include <fcntl.h>
  #include <unistd.h>
  #include <sys/ioctl.h>
  #include <sys/mman.h>


  #define PERF_WITH_POST 1


  int width = 640;
  int height = 640;
  int channels = 3;


  /*-------------------------------------------
                    Functions
  -------------------------------------------*/

  static void dump_tensor_attr(rknn_tensor_attr *attr)
  {
    char dims[128] = {0};
    for (int i = 0; i < attr->n_dims; ++i)
    {
      int idx = strlen(dims);
      sprintf(&dims[idx], "%d%s", attr->dims[i], (i == attr->n_dims - 1) ? "" : ", ");
    }
    printf("  index=%d, name=%s, n_dims=%d, dims=[%s], n_elems=%d, size=%d, fmt=%s, type=%s, qnt_type=%s, "
           "zp=%d, scale=%f\n",
           attr->index, attr->name, attr->n_dims, dims, attr->n_elems, attr->size, get_format_string(attr->fmt),
           get_type_string(attr->type), get_qnt_type_string(attr->qnt_type), attr->zp, attr->scale);
  }

  //RTSP Funtions
  static RK_S32 test_venc_init(int chnId, int width, int height, RK_CODEC_ID_E enType) {
  	printf("%s\n",__func__);
  	VENC_RECV_PIC_PARAM_S stRecvParam;
  	VENC_CHN_ATTR_S stAttr;
  	memset(&stAttr, 0, sizeof(VENC_CHN_ATTR_S));

  	// RTSP H264
  	stAttr.stVencAttr.enType = enType;
  	//stAttr.stVencAttr.enPixelFormat = RK_FMT_YUV420SP;
  	stAttr.stVencAttr.enPixelFormat = RK_FMT_RGB888;
  	stAttr.stVencAttr.u32Profile = H264E_PROFILE_MAIN;
  	stAttr.stVencAttr.u32PicWidth = width;
  	stAttr.stVencAttr.u32PicHeight = height;
  	stAttr.stVencAttr.u32VirWidth = width;
  	stAttr.stVencAttr.u32VirHeight = height;
  	stAttr.stVencAttr.u32StreamBufCnt = 2;
  	stAttr.stVencAttr.u32BufSize = width * height * 3 / 2;
  	stAttr.stVencAttr.enMirror = MIRROR_NONE;

  	stAttr.stRcAttr.enRcMode = VENC_RC_MODE_H264CBR;
  	stAttr.stRcAttr.stH264Cbr.u32BitRate = 10 * 1024;
  	stAttr.stRcAttr.stH264Cbr.u32Gop = 1;
  	RK_MPI_VENC_CreateChn(chnId, &stAttr);


  	memset(&stRecvParam, 0, sizeof(VENC_RECV_PIC_PARAM_S));
  	stRecvParam.s32RecvPicNum = -1;
  	RK_MPI_VENC_StartRecvFrame(chnId, &stRecvParam);

  	return 0;
  }


  // demo板dev默认都是0，根据不同的channel 来选择不同的vi节点
  int vi_dev_init() {
  	printf("%s\n", __func__);
  	int ret = 0;
  	int devId = 0;
  	int pipeId = devId;

  	VI_DEV_ATTR_S stDevAttr;
  	VI_DEV_BIND_PIPE_S stBindPipe;
  	memset(&stDevAttr, 0, sizeof(stDevAttr));
  	memset(&stBindPipe, 0, sizeof(stBindPipe));
  	// 0. get dev config status
  	ret = RK_MPI_VI_GetDevAttr(devId, &stDevAttr);
  	if (ret == RK_ERR_VI_NOT_CONFIG) {
  		// 0-1.config dev
  		ret = RK_MPI_VI_SetDevAttr(devId, &stDevAttr);
  		if (ret != RK_SUCCESS) {
  			printf("RK_MPI_VI_SetDevAttr %x\n", ret);
  			return -1;
  		}
  	} else {
  		printf("RK_MPI_VI_SetDevAttr already\n");
  	}
  	// 1.get dev enable status
  	ret = RK_MPI_VI_GetDevIsEnable(devId);
  	if (ret != RK_SUCCESS) {
  		// 1-2.enable dev
  		ret = RK_MPI_VI_EnableDev(devId);
  		if (ret != RK_SUCCESS) {
  			printf("RK_MPI_VI_EnableDev %x\n", ret);
  			return -1;
  		}
  		// 1-3.bind dev/pipe
  		stBindPipe.u32Num = pipeId;
  		stBindPipe.PipeId[0] = pipeId;
  		ret = RK_MPI_VI_SetDevBindPipe(devId, &stBindPipe);
  		if (ret != RK_SUCCESS) {
  			printf("RK_MPI_VI_SetDevBindPipe %x\n", ret);
  			return -1;
  		}
  	} else {
  		printf("RK_MPI_VI_EnableDev already\n");
  	}

  	return 0;
  }

  int vi_chn_init(int channelId, int width, int height) {
  	int ret;
  	int buf_cnt = 2;
  	// VI init
  	VI_CHN_ATTR_S vi_chn_attr;
  	memset(&vi_chn_attr, 0, sizeof(vi_chn_attr));
  	vi_chn_attr.stIspOpt.u32BufCount = buf_cnt;
  	vi_chn_attr.stIspOpt.enMemoryType =
  	    VI_V4L2_MEMORY_TYPE_DMABUF; // VI_V4L2_MEMORY_TYPE_MMAP;
  	vi_chn_attr.stSize.u32Width = width;
  	vi_chn_attr.stSize.u32Height = height;
  	vi_chn_attr.enPixelFormat = RK_FMT_YUV420SP;
  	vi_chn_attr.enCompressMode = COMPRESS_MODE_NONE; // COMPRESS_AFBC_16x16;
  	vi_chn_attr.u32Depth = 2;
  	ret = RK_MPI_VI_SetChnAttr(0, channelId, &vi_chn_attr);
  	ret |= RK_MPI_VI_EnableChn(0, channelId);
  	if (ret) {
  		printf("ERROR: create VI error! ret=%d\n", ret);
  		return ret;
  	}

  	return ret;
  }

  int test_vpss_init(int VpssChn, int width, int height) {
  	printf("%s\n",__func__);
  	int s32Ret;
  	VPSS_CHN_ATTR_S stVpssChnAttr;
  	VPSS_GRP_ATTR_S stGrpVpssAttr;

  	int s32Grp = 0;

  	stGrpVpssAttr.u32MaxW = 4096;
  	stGrpVpssAttr.u32MaxH = 4096;
  	stGrpVpssAttr.enPixelFormat = RK_FMT_YUV420SP;
  	stGrpVpssAttr.stFrameRate.s32SrcFrameRate = -1;
  	stGrpVpssAttr.stFrameRate.s32DstFrameRate = -1;
  	stGrpVpssAttr.enCompressMode = COMPRESS_MODE_NONE;

  	stVpssChnAttr.enChnMode = VPSS_CHN_MODE_USER;
  	stVpssChnAttr.enDynamicRange = DYNAMIC_RANGE_SDR8;
  	stVpssChnAttr.enPixelFormat = RK_FMT_RGB888;
  	stVpssChnAttr.stFrameRate.s32SrcFrameRate = -1;
  	stVpssChnAttr.stFrameRate.s32DstFrameRate = -1;
  	stVpssChnAttr.u32Width = width;
  	stVpssChnAttr.u32Height = height;
  	stVpssChnAttr.enCompressMode = COMPRESS_MODE_NONE;

  	s32Ret = RK_MPI_VPSS_CreateGrp(s32Grp, &stGrpVpssAttr);
  	if (s32Ret != RK_SUCCESS) {
  		return s32Ret;
  	}

  	s32Ret = RK_MPI_VPSS_SetChnAttr(s32Grp, VpssChn, &stVpssChnAttr);
  	if (s32Ret != RK_SUCCESS) {
  		return s32Ret;
  	}
  	s32Ret = RK_MPI_VPSS_EnableChn(s32Grp, VpssChn);
  	if (s32Ret != RK_SUCCESS) {
  		return s32Ret;
  	}

  	s32Ret = RK_MPI_VPSS_StartGrp(s32Grp);
  	if (s32Ret != RK_SUCCESS) {
  		return s32Ret;
  	}
  	return s32Ret;
  }

  /*-------------------------------------------
                    Main Functions
  -------------------------------------------*/
  int main(int argc, char *argv[])
  {
    char *model_path = "./model/RV1106/yolov5s-640-640.rknn";

    int loop_count = 1;
    const float nms_threshold = NMS_THRESH;
    const float box_conf_threshold = BOX_THRESH;

    int img_width =  640;
    int img_height = 640;

    rknn_context ctx = 0;


    // Load RKNN Model Init rknn from model path
    int ret = rknn_init(&ctx, model_path, 0, 0, NULL);
    if (ret < 0)
    {
      printf("rknn_init fail! ret=%d\n", ret);
      return -1;
    }

    // Get sdk and driver version
    rknn_sdk_version sdk_ver;
    ret = rknn_query(ctx, RKNN_QUERY_SDK_VERSION, &sdk_ver, sizeof(sdk_ver));
    if (ret != RKNN_SUCC)
    {
      printf("rknn_query fail! ret=%d\n", ret);
      return -1;
    }
    printf("rknn_api/rknnrt version: %s, driver version: %s\n", sdk_ver.api_version, sdk_ver.drv_version);

    // Get Model Input Output Info
    rknn_input_output_num io_num;
    ret = rknn_query(ctx, RKNN_QUERY_IN_OUT_NUM, &io_num, sizeof(io_num)); //get num of in/out tensor
    if (ret != RKNN_SUCC)
    {
      printf("rknn_query fail! ret=%d\n", ret);
      return -1;
    }
    printf("model input num: %d, output num: %d\n", io_num.n_input, io_num.n_output);


    //Get Model Input/Output attribute
    printf("input tensors:\n");
    rknn_tensor_attr input_attrs[io_num.n_input];
    memset(input_attrs, 0, io_num.n_input * sizeof(rknn_tensor_attr));
    for (uint32_t i = 0; i < io_num.n_input; i++)
    {
      input_attrs[i].index = i;
      // query info
      ret = rknn_query(ctx, RKNN_QUERY_INPUT_ATTR, &(input_attrs[i]), sizeof(rknn_tensor_attr));
      if (ret < 0)
      {
        printf("rknn_init error! ret=%d\n", ret);
        return -1;
      }
      dump_tensor_attr(&input_attrs[i]);
    }

    printf("output tensors:\n");
    rknn_tensor_attr output_attrs[io_num.n_output];
    memset(output_attrs, 0, io_num.n_output * sizeof(rknn_tensor_attr));
    for (uint32_t i = 0; i < io_num.n_output; i++)
    {
      output_attrs[i].index = i;
      // query info
      ret = rknn_query(ctx, RKNN_QUERY_NATIVE_NHWC_OUTPUT_ATTR, &(output_attrs[i]), sizeof(rknn_tensor_attr));
      if (ret != RKNN_SUCC)
      {
        printf("rknn_query fail! ret=%d\n", ret);
        return -1;
      }
      dump_tensor_attr(&output_attrs[i]);
    }

    //different from here........................................

    // Get custom string
    rknn_custom_string custom_string;
    ret = rknn_query(ctx, RKNN_QUERY_CUSTOM_STRING, &custom_string, sizeof(custom_string));
    if (ret != RKNN_SUCC)
    {
      printf("rknn_query fail! ret=%d\n", ret);
      return -1;
    }
    printf("custom string: %s\n", custom_string.string);

    unsigned char *input_data =  new unsigned char[width * height * channels] ;
    rknn_tensor_type input_type = RKNN_TENSOR_UINT8;
    rknn_tensor_format input_layout = RKNN_TENSOR_NHWC;


    //Init Opencv
    cv::VideoCapture cap;
    //cv::Mat bgr;
    cap.set(cv::CAP_PROP_FRAME_WIDTH,  240);
    cap.set(cv::CAP_PROP_FRAME_HEIGHT, 240);
    cap.open(0);
    //Init RTSP
    RK_S32 s32Ret = 0;
    //h264_frame
  	VENC_STREAM_S stFrame;
  	stFrame.pstPack = (VENC_PACK_S *)malloc(sizeof(VENC_PACK_S));
   	VIDEO_FRAME_INFO_S h264_frame;
   	VIDEO_FRAME_INFO_S stVpssFrame;

  	// rkaiq init
  	RK_BOOL multi_sensor = RK_FALSE;
  	const char *iq_dir = "/etc/iqfiles";
  	rk_aiq_working_mode_t hdr_mode = RK_AIQ_WORKING_MODE_NORMAL;
  	//hdr_mode = RK_AIQ_WORKING_MODE_ISP_HDR2;
  	SAMPLE_COMM_ISP_Init(0, hdr_mode, multi_sensor, iq_dir);
  	SAMPLE_COMM_ISP_Run(0);

  	// rkmpi init
  	if (RK_MPI_SYS_Init() != RK_SUCCESS) {
  		RK_LOGE("rk mpi sys init fail!");
  		return -1;
  	}

  	// rtsp init
  	rtsp_demo_handle g_rtsplive = NULL;
  	rtsp_session_handle g_rtsp_session;
  	g_rtsplive = create_rtsp_demo(554);
  	g_rtsp_session = rtsp_new_session(g_rtsplive, "/live/0");
  	rtsp_set_video(g_rtsp_session, RTSP_CODEC_ID_VIDEO_H264, NULL, 0);
  	rtsp_sync_video_ts(g_rtsp_session, rtsp_get_reltime(), rtsp_get_ntptime());
  	//new
  	//rtsp_set_server_address(g_rtsplive, "172.32.0.93");  // set RTSP server IP 172.32.0.93

  	// vi init
  	vi_dev_init();
  	vi_chn_init(0, width, height);

  	// vpss init
  	test_vpss_init(0, width, height);

  	// bind vi to vpss
  	MPP_CHN_S stSrcChn, stvpssChn;
  	stSrcChn.enModId = RK_ID_VI;
  	stSrcChn.s32DevId = 0;
  	stSrcChn.s32ChnId = 0;

  	stvpssChn.enModId = RK_ID_VPSS;
  	stvpssChn.s32DevId = 0;
  	stvpssChn.s32ChnId = 0;
  	printf("====RK_MPI_SYS_Bind vi0 to vpss0====\n");
  	s32Ret = RK_MPI_SYS_Bind(&stSrcChn, &stvpssChn);
  	if (s32Ret != RK_SUCCESS) {
  		RK_LOGE("bind 0 ch venc failed");
  		return -1;
  	}

  	// venc init
  	RK_CODEC_ID_E enCodecType = RK_VIDEO_ID_AVC;
  	test_venc_init(0, width, height, enCodecType);
    //RTSP Init down


    // Create input tensor memory
    rknn_tensor_mem *input_mems[1];
    // default input type is int8 (normalize and quantize need compute in outside)
    // if set uint8, will fuse normalize and quantize to npu
    input_attrs[0].type = input_type;
    // default fmt is NHWC, npu only support NHWC in zero copy mode
    input_attrs[0].fmt = input_layout;

    input_mems[0] = rknn_create_mem(ctx, input_attrs[0].size_with_stride);


    // Copy input data to input tensor memory
    int width = input_attrs[0].dims[2];
    int stride = input_attrs[0].w_stride;

    // Create output tensor memory
    rknn_tensor_mem *output_mems[io_num.n_output];
    for (uint32_t i = 0; i < io_num.n_output; ++i)
    {
      output_mems[i] = rknn_create_mem(ctx, output_attrs[i].size_with_stride);
    }

    // Set input tensor memory
    ret = rknn_set_io_mem(ctx, input_mems[0], &input_attrs[0]);
    if (ret < 0)
    {
      printf("rknn_set_io_mem fail! ret=%d\n", ret);
      return -1;
    }

    // Set output tensor memory
    for (uint32_t i = 0; i < io_num.n_output; ++i)
    {
      // set output memory and attribute
      ret = rknn_set_io_mem(ctx, output_mems[i], &output_attrs[i]);
      if (ret < 0)
      {
        printf("rknn_set_io_mem fail! ret=%d\n", ret);
        return -1;
      }
    }

    //get model size
    int model_width = 0;
    int model_height = 0;
    printf("model is NHWC input fmt\n");
    model_width = input_attrs[0].dims[1];
    model_height = input_attrs[0].dims[2];


    // For post_process
    float scale_w = (float)model_width / img_width;
    float scale_h = (float)model_height / img_height;

    detect_result_group_t detect_result_group;
    std::vector<float> out_scales;
    std::vector<int32_t> out_zps;

    for (int i = 0; i < io_num.n_output; ++i)
    {
      out_scales.push_back(output_attrs[i].scale);
      out_zps.push_back(output_attrs[i].zp);
    }


    while(1)
    {// get vpss frame
  		s32Ret = RK_MPI_VPSS_GetChnFrame(0,0, &stVpssFrame,-1);
      if(s32Ret == RK_SUCCESS)
  		{
      void *data = RK_MPI_MB_Handle2VirAddr(stVpssFrame.stVFrame.pMbBlk);
      //test
      cv::Mat bgr(height,width,CV_8UC3, data);
      cap >> bgr;
      cv::resize(bgr, bgr, cv::Size(640,640), 0, 0, cv::INTER_LINEAR);

      for (int y = 0; y < height; ++y) {
        for (int x = 0; x < width; ++x) {
            cv::Vec3b pixel = bgr.at<cv::Vec3b>(y, x); //GET different 3 colour in each pixel
            input_data[(y * width + x) * channels + 0] = pixel[2]; // Red
            input_data[(y * width + x) * channels + 1] = pixel[1]; // Green
            input_data[(y * width + x) * channels + 2] = pixel[0]; // Blue
        }
      }

      //printf("copy input data\n");
      memcpy(input_mems[0]->virt_addr, input_data, width * input_attrs[0].dims[1] * input_attrs[0].dims[3]);

      // Run
      //printf("Begin perf ...\n");

      ret = rknn_run(ctx, NULL);

      if (ret < 0)
      {
        printf("rknn run error %d\n", ret);
        return -1;
      }

      // post process
      post_process((int8_t *)output_mems[0]->virt_addr, (int8_t *)output_mems[1]->virt_addr, (int8_t *)output_mems[2]->virt_addr, 640, 640,
                   box_conf_threshold, nms_threshold, scale_w, scale_h, out_zps, out_scales, &detect_result_group);

      //char text[256];
      for (int i = 0; i < detect_result_group.count; i++)
      {
        detect_result_t *det_result = &(detect_result_group.results[i]);
        //sprintf(text, "%s %.1f%%", det_result->name, det_result->prop * 100);
        printf("%s @ (%d %d %d %d) %f\n",
                det_result->name,
                det_result->box.left, det_result->box.top, det_result->box.right, det_result->box.bottom,
                det_result->prop);
        cv::rectangle(bgr,cv::Point(det_result->box.left ,det_result->box.top),
                          cv::Point(det_result->box.right,det_result->box.bottom),cv::Scalar(0,255,0),2);
        cv::putText(bgr, det_result->name, cv::Point(det_result->box.left, det_result->box.top - 8),
                                           cv::FONT_HERSHEY_SIMPLEX,1,
                                           cv::Scalar(0,255,0),2);

      }
      // copy RTSP image
      memcpy(data, bgr.data, 720 * 480 * 3);
      }
      // send stream
  		// encode H264
  		RK_MPI_VENC_SendFrame(0, &stVpssFrame,-1);
  		// rtsp
  		s32Ret = RK_MPI_VENC_GetStream(0, &stFrame, -1);
  		if(s32Ret == RK_SUCCESS)
  		{
  			if(g_rtsplive && g_rtsp_session)
  			{
  				//printf("len = %d PTS = %d \n",stFrame.pstPack->u32Len, stFrame.pstPack->u64PTS);

  				void *pData = RK_MPI_MB_Handle2VirAddr(stFrame.pstPack->pMbBlk);
  				rtsp_tx_video(g_rtsp_session, (uint8_t *)pData, stFrame.pstPack->u32Len,
  							  stFrame.pstPack->u64PTS);
  				rtsp_do_event(g_rtsplive);
  			}
  		}

  		// release frame
  		s32Ret = RK_MPI_VPSS_ReleaseChnFrame(0, 0, &stVpssFrame);
  		if (s32Ret != RK_SUCCESS) {
  			RK_LOGE("RK_MPI_VI_ReleaseChnFrame fail %x", s32Ret);
  		}
  		s32Ret = RK_MPI_VENC_ReleaseStream(0, &stFrame);
  		if (s32Ret != RK_SUCCESS) {
  			RK_LOGE("RK_MPI_VENC_ReleaseStream fail %x", s32Ret);
  		}

    }


    RK_MPI_SYS_UnBind(&stSrcChn, &stvpssChn);

  	RK_MPI_VI_DisableChn(0, 0);
  	RK_MPI_VI_DisableDev(0);

  	RK_MPI_VPSS_StopGrp(0);
  	RK_MPI_VPSS_DestroyGrp(0);

  	RK_MPI_VENC_StopRecvFrame(0);
  	RK_MPI_VENC_DestroyChn(0);

  	free(stFrame.pstPack);

  	if (g_rtsplive)
  		rtsp_del_demo(g_rtsplive);
  	SAMPLE_COMM_ISP_Stop(0);

  	RK_MPI_SYS_Exit();

    // Destroy rknn memory
    rknn_destroy_mem(ctx, input_mems[0]);
    for (uint32_t i = 0; i < io_num.n_output; ++i)
    {
      rknn_destroy_mem(ctx, output_mems[i]);
    }

    // destroy
    rknn_destroy(ctx);

    delete[] input_data;

    return 0;
  }


  成功编译并且生成了项目，我不知道是图像处理的问题吗还是其他的摄像头打开等问题(已在运行前RkLunch-stop.sh)

  Attachments







  • Quote

chenmodegaoyang

Posts: 49

Joined: 2024-02-06 8:03

2024-02-26 1:44

很感谢官方给予的支持，我用了下demo确实效果还可以，还想问一下，如果不通过USB 0获取网络串流的话，即如果我想通过网线设备eth 0去看RTSP推流的话需要做哪些工作呢，我目前发现接上网线到设备后这个板子并没有eth 0 的IP地址：

在电脑端手动设置了IP192.168.0.201但在串流上用了rtsp://192.168.0.201/live/0没有办法显示这个是不是也需要给eth 0 设置一下他的静态IP才可以用这个demo进行推流通过网线链接电脑显示呢，另外也尝试了都用DHCP方式获取IP但是均显示上面图片结果

Attachments

• Quote

        #if [ -d "/oem/usr/share/iqfiles" ];then
        #        rkipc -a /oem/usr/share/iqfiles &
        #else
        #       rkipc &
        #

#include <assert.h>
#include <errno.h>
#include <fcntl.h>
#include <getopt.h>
#include <pthread.h>
#include <signal.h>
#include <stdbool.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/poll.h>
#include <sys/types.h>
#include <sys/wait.h>
#include <time.h>
#include <unistd.h>
#include <vector>
#include <termios.h>

#include "rtsp_demo.h"
#include "sample_comm.h"
#include "yolov5.h"

#include <opencv2/core/core.hpp>
#include <opencv2/highgui/highgui.hpp>
#include <opencv2/imgproc/imgproc.hpp>


// disp size
int width    = 720;
int height   = 480;

// model size
int model_width = 640;
int model_height = 640;
float scale ;
int leftPadding ;
int topPadding  ;

static RK_S32 test_venc_init(int chnId, int width, int height, RK_CODEC_ID_E enType) {
	printf("%s\n",__func__);
	VENC_RECV_PIC_PARAM_S stRecvParam;
	VENC_CHN_ATTR_S stAttr;
	memset(&stAttr, 0, sizeof(VENC_CHN_ATTR_S));

	// RTSP H264
	stAttr.stVencAttr.enType = enType;
	//stAttr.stVencAttr.enPixelFormat = RK_FMT_YUV420SP;
	stAttr.stVencAttr.enPixelFormat = RK_FMT_RGB888;
	stAttr.stVencAttr.u32Profile = H264E_PROFILE_MAIN;
	stAttr.stVencAttr.u32PicWidth = width;
	stAttr.stVencAttr.u32PicHeight = height;
	stAttr.stVencAttr.u32VirWidth = width;
	stAttr.stVencAttr.u32VirHeight = height;
	stAttr.stVencAttr.u32StreamBufCnt = 2;
	stAttr.stVencAttr.u32BufSize = width * height * 3 / 2;
	stAttr.stVencAttr.enMirror = MIRROR_NONE;

	stAttr.stRcAttr.enRcMode = VENC_RC_MODE_H264CBR;
	stAttr.stRcAttr.stH264Cbr.u32BitRate = 3 * 1024;
	stAttr.stRcAttr.stH264Cbr.u32Gop = 1;
	RK_MPI_VENC_CreateChn(chnId, &stAttr);

	memset(&stRecvParam, 0, sizeof(VENC_RECV_PIC_PARAM_S));
	stRecvParam.s32RecvPicNum = -1;
	RK_MPI_VENC_StartRecvFrame(chnId, &stRecvParam);

	return 0;
}


// demo板dev默认都是0，根据不同的channel 来选择不同的vi节点
int vi_dev_init() {
	printf("%s\n", __func__);
	int ret = 0;
	int devId = 0;
	int pipeId = devId;

	VI_DEV_ATTR_S stDevAttr;
	VI_DEV_BIND_PIPE_S stBindPipe;
	memset(&stDevAttr, 0, sizeof(stDevAttr));
	memset(&stBindPipe, 0, sizeof(stBindPipe));
	// 0. get dev config status
	ret = RK_MPI_VI_GetDevAttr(devId, &stDevAttr);
	if (ret == RK_ERR_VI_NOT_CONFIG) {
		// 0-1.config dev
		ret = RK_MPI_VI_SetDevAttr(devId, &stDevAttr);
		if (ret != RK_SUCCESS) {
			printf("RK_MPI_VI_SetDevAttr %x\n", ret);
			return -1;
		}
	} else {
		printf("RK_MPI_VI_SetDevAttr already\n");
	}
	// 1.get dev enable status
	ret = RK_MPI_VI_GetDevIsEnable(devId);
	if (ret != RK_SUCCESS) {
		// 1-2.enable dev
		ret = RK_MPI_VI_EnableDev(devId);
		if (ret != RK_SUCCESS) {
			printf("RK_MPI_VI_EnableDev %x\n", ret);
			return -1;
		}
		// 1-3.bind dev/pipe
		stBindPipe.u32Num = pipeId;
		stBindPipe.PipeId[0] = pipeId;
		ret = RK_MPI_VI_SetDevBindPipe(devId, &stBindPipe);
		if (ret != RK_SUCCESS) {
			printf("RK_MPI_VI_SetDevBindPipe %x\n", ret);
			return -1;
		}
	} else {
		printf("RK_MPI_VI_EnableDev already\n");
	}

	return 0;
}

int vi_chn_init(int channelId, int width, int height) {
	int ret;
	int buf_cnt = 2;
	// VI init
	VI_CHN_ATTR_S vi_chn_attr;
	memset(&vi_chn_attr, 0, sizeof(vi_chn_attr));
	vi_chn_attr.stIspOpt.u32BufCount = buf_cnt;
	vi_chn_attr.stIspOpt.enMemoryType =
	    VI_V4L2_MEMORY_TYPE_DMABUF; // VI_V4L2_MEMORY_TYPE_MMAP;
	vi_chn_attr.stSize.u32Width = width;
	vi_chn_attr.stSize.u32Height = height;
	vi_chn_attr.enPixelFormat = RK_FMT_YUV420SP;
	vi_chn_attr.enCompressMode = COMPRESS_MODE_NONE; // COMPRESS_AFBC_16x16;
	vi_chn_attr.u32Depth = 2;
	ret = RK_MPI_VI_SetChnAttr(0, channelId, &vi_chn_attr);
	ret |= RK_MPI_VI_EnableChn(0, channelId);
	if (ret) {
		printf("ERROR: create VI error! ret=%d\n", ret);
		return ret;
	}

	return ret;
}

int test_vpss_init(int VpssChn, int width, int height) {
	printf("%s\n",__func__);
	int s32Ret;
	VPSS_CHN_ATTR_S stVpssChnAttr;
	VPSS_GRP_ATTR_S stGrpVpssAttr;

	int s32Grp = 0;

	stGrpVpssAttr.u32MaxW = 4096;
	stGrpVpssAttr.u32MaxH = 4096;
	stGrpVpssAttr.enPixelFormat = RK_FMT_YUV420SP;
	stGrpVpssAttr.stFrameRate.s32SrcFrameRate = -1;
	stGrpVpssAttr.stFrameRate.s32DstFrameRate = -1;
	stGrpVpssAttr.enCompressMode = COMPRESS_MODE_NONE;

	stVpssChnAttr.enChnMode = VPSS_CHN_MODE_USER;
	stVpssChnAttr.enDynamicRange = DYNAMIC_RANGE_SDR8;
	stVpssChnAttr.enPixelFormat = RK_FMT_RGB888;
	stVpssChnAttr.stFrameRate.s32SrcFrameRate = -1;
	stVpssChnAttr.stFrameRate.s32DstFrameRate = -1;
	stVpssChnAttr.u32Width = width;
	stVpssChnAttr.u32Height = height;
	stVpssChnAttr.enCompressMode = COMPRESS_MODE_NONE;

	s32Ret = RK_MPI_VPSS_CreateGrp(s32Grp, &stGrpVpssAttr);
	if (s32Ret != RK_SUCCESS) {
		return s32Ret;
	}

	s32Ret = RK_MPI_VPSS_SetChnAttr(s32Grp, VpssChn, &stVpssChnAttr);
	if (s32Ret != RK_SUCCESS) {
		return s32Ret;
	}
	s32Ret = RK_MPI_VPSS_EnableChn(s32Grp, VpssChn);
	if (s32Ret != RK_SUCCESS) {
		return s32Ret;
	}

	s32Ret = RK_MPI_VPSS_StartGrp(s32Grp);
	if (s32Ret != RK_SUCCESS) {
		return s32Ret;
	}
	return s32Ret;
}

cv::Mat letterbox(cv::Mat input)
{
	float scaleX = (float)model_width  / (float)width; //0.888
	float scaleY = (float)model_height / (float)height; //1.125
	scale = scaleX < scaleY ? scaleX : scaleY;

	int inputWidth   = (int)((float)width * scale);
	int inputHeight  = (int)((float)height * scale);

	leftPadding = (model_width  - inputWidth) / 2;
	topPadding  = (model_height - inputHeight) / 2;


	cv::Mat inputScale;
    cv::resize(input, inputScale, cv::Size(inputWidth,inputHeight), 0, 0, cv::INTER_LINEAR);
	cv::Mat letterboxImage(640, 640, CV_8UC3,cv::Scalar(0, 0, 0));
    cv::Rect roi(leftPadding, topPadding, inputWidth, inputHeight);
    inputScale.copyTo(letterboxImage(roi));

	return letterboxImage;
}

void mapCoordinates(int *x, int *y) {
	int mx = *x - leftPadding;
	int my = *y - topPadding;

    *x = (int)((float)mx / scale);
    *y = (int)((float)my / scale);
}
void rx_buffer_Handle(char *p)
{
if(strncmp(p,"close",5)==0){
	//close demo
	exit(0);
}else if(strncmp(p,"reboot",5)==0){
	//reboot system
	system("reboot");
}else if(strncmp(p,"rkill",5)==0){
	//killall rkipc
	system("killall rkipc");
}
}


rtsp_demo_handle g_rtsplive = NULL;
rknn_app_context_t rknn_app_ctx;
MPP_CHN_S stSrcChn, stvpssChn;
VENC_STREAM_S stFrame;
int serial_fd;
//parameter release

void sigint_handler(int signal){
	//release
	close(serial_fd);
	RK_MPI_SYS_UnBind(&stSrcChn, &stvpssChn);

	RK_MPI_VI_DisableChn(0, 0);
	RK_MPI_VI_DisableDev(0);

	RK_MPI_VPSS_StopGrp(0);
	RK_MPI_VPSS_DestroyGrp(0);

	RK_MPI_VENC_StopRecvFrame(0);
	RK_MPI_VENC_DestroyChn(0);

	free(stFrame.pstPack);

	if (g_rtsplive)
	rtsp_del_demo(g_rtsplive);
	SAMPLE_COMM_ISP_Stop(0);

	RK_MPI_SYS_Exit();
	// Release rknn model
    release_yolov5_model(&rknn_app_ctx);
    deinit_post_process();
	exit(0);
}



int main(int argc, char *argv[]) {



	RK_S32 s32Ret = 0;
	int sX,sY,eX,eY;

	// Rknn model
	char text[16];

	object_detect_result_list od_results;
    int ret;
	const char *model_path = "./model/yolov5.rknn";
    memset(&rknn_app_ctx, 0, sizeof(rknn_app_context_t));
    init_yolov5_model(model_path, &rknn_app_ctx);
	printf("init rknn model success!\n");
    init_post_process();

	//h264_frame

	stFrame.pstPack = (VENC_PACK_S *)malloc(sizeof(VENC_PACK_S));
 	VIDEO_FRAME_INFO_S h264_frame;
 	VIDEO_FRAME_INFO_S stVpssFrame;

	// rkaiq init
	RK_BOOL multi_sensor = RK_FALSE;
	const char *iq_dir = "/etc/iqfiles";
	rk_aiq_working_mode_t hdr_mode = RK_AIQ_WORKING_MODE_NORMAL;
	//hdr_mode = RK_AIQ_WORKING_MODE_ISP_HDR2;
	SAMPLE_COMM_ISP_Init(0, hdr_mode, multi_sensor, iq_dir);
	SAMPLE_COMM_ISP_Run(0);

	// rkmpi init
	if (RK_MPI_SYS_Init() != RK_SUCCESS) {
		RK_LOGE("rk mpi sys init fail!");
		return -1;
	}

	// rtsp init

	rtsp_session_handle g_rtsp_session;
	g_rtsplive = create_rtsp_demo(554);
	g_rtsp_session = rtsp_new_session(g_rtsplive, "/live/0");
	rtsp_set_video(g_rtsp_session, RTSP_CODEC_ID_VIDEO_H264, NULL, 0);
	rtsp_sync_video_ts(g_rtsp_session, rtsp_get_reltime(), rtsp_get_ntptime());

	// vi init
	vi_dev_init();
	vi_chn_init(0, width, height);

	// vpss init
	test_vpss_init(0, width, height);

	// bind vi to vpss

	stSrcChn.enModId = RK_ID_VI;
	stSrcChn.s32DevId = 0;
	stSrcChn.s32ChnId = 0;

	stvpssChn.enModId = RK_ID_VPSS;
	stvpssChn.s32DevId = 0;
	stvpssChn.s32ChnId = 0;
	printf("====RK_MPI_SYS_Bind vi0 to vpss0====\n");
	s32Ret = RK_MPI_SYS_Bind(&stSrcChn, &stvpssChn);
	if (s32Ret != RK_SUCCESS) {
		RK_LOGE("bind 0 ch venc failed");
		return -1;
	}

	// venc init
	RK_CODEC_ID_E enCodecType = RK_VIDEO_ID_AVC;
	test_venc_init(0, width, height, enCodecType);
	printf("venc init success\n");

	//uart3 init
	int serial_port_num;
    const char serial_port[] = "/dev/ttyS3";

	signal(SIGINT, sigint_handler);

    serial_fd = open(serial_port, O_RDWR | O_NOCTTY);
    if (serial_fd == -1) {
        perror("Failed to open serial port");
        return 1;
    }

    struct termios tty;
    memset(&tty, 0, sizeof(tty));

    if (tcgetattr(serial_fd, &tty) != 0) {
        perror("Error from tcgetattr");
        return 1;
    }

    cfsetospeed(&tty, B9600);
    cfsetispeed(&tty, B9600);

    tty.c_cflag &= ~PARENB;
    tty.c_cflag &= ~CSTOPB;
    tty.c_cflag &= ~CSIZE;
    tty.c_cflag |= CS8;

    if (tcsetattr(serial_fd, TCSANOW, &tty) != 0) {
        perror("Error from tcsetattr");
        return 1;
    }

	//init fork
	pid_t child_pid;
	char tx_buffer[256];
	child_pid=fork();
	if(child_pid<0)
	{
		perror("fork error");
		return -1;
	}
	if(child_pid==0){
	while(1)
	{
		// get vpss frame
		s32Ret = RK_MPI_VPSS_GetChnFrame(0,0, &stVpssFrame,-1);
		if(s32Ret == RK_SUCCESS)
		{
			void *data = RK_MPI_MB_Handle2VirAddr(stVpssFrame.stVFrame.pMbBlk);
			//opencv
			cv::Mat frame(height,width,CV_8UC3,data);
			//cv::Mat frame640;
        	//cv::resize(frame, frame640, cv::Size(640,640), 0, 0, cv::INTER_LINEAR);
			//letterbox
			cv::Mat letterboxImage = letterbox(frame);
			memcpy(rknn_app_ctx.input_mems[0]->virt_addr, letterboxImage.data, model_width*model_height*3);
			inference_yolov5_model(&rknn_app_ctx, &od_results);

			for(int i = 0; i < od_results.count; i++)
			{
				//获取框的四个坐标
				if(od_results.count >= 1)
				{
					object_detect_result *det_result = &(od_results.results[i]);
					/*printf("%s @ (%d %d %d %d) %.3f\n", coco_cls_to_name(det_result->cls_id),
							 det_result->box.left, det_result->box.top,
							 det_result->box.right, det_result->box.bottom,
							 det_result->prop);
					*/
					sX = (int)(det_result->box.left   );
					sY = (int)(det_result->box.top 	  );
					eX = (int)(det_result->box.right  );
					eY = (int)(det_result->box.bottom );
					int centerX = (sX + eX) / 2;
					int centerY = (sY + eY) / 2;
					// printf("$RV1106,%s,%d,%d,%.3f,%d,%d,%d,%d\n", coco_cls_to_name(det_result->cls_id),
					// 		 centerX,centerY,det_result->prop,
					// 		 det_result->box.left,det_result->box.right,
					// 		 det_result->box.top,det_result->box.bottom
					// 		 );
					sprintf(tx_buffer,"$RV1106,%s,%d,%d,%.3f,%d,%d,%d,%d\n", coco_cls_to_name(det_result->cls_id),
							 centerX,centerY,det_result->prop,
							 det_result->box.left,det_result->box.right,
							 det_result->box.top,det_result->box.bottom
							 );
					//send rknn result
					write(serial_fd,tx_buffer,sizeof(tx_buffer));
					memset(tx_buffer,0,sizeof(tx_buffer));
					mapCoordinates(&sX,&sY);
					mapCoordinates(&eX,&eY);

					cv::rectangle(frame,cv::Point(sX ,sY),
								        cv::Point(eX ,eY),
										cv::Scalar(0,255,0),3);
					sprintf(text, "%s %.1f%%", coco_cls_to_name(det_result->cls_id), det_result->prop * 100);
					cv::putText(frame,text,cv::Point(sX, sY - 8),
												 cv::FONT_HERSHEY_SIMPLEX,1,
												 cv::Scalar(0,255,0),2);
					//draw circle
					cv::circle(frame, cv::Point(centerX, centerY), 5, cv::Scalar(0, 0, 255), -1);
				}
			}

			memcpy(data, frame.data, width * height * 3);
		}


		// send stream
		// encode H264
		RK_MPI_VENC_SendFrame(0, &stVpssFrame,-1);
		// rtsp
		s32Ret = RK_MPI_VENC_GetStream(0, &stFrame, -1);
		if(s32Ret == RK_SUCCESS)
		{
			if(g_rtsplive && g_rtsp_session)
			{
				//printf("len = %d PTS = %d \n",stFrame.pstPack->u32Len, stFrame.pstPack->u64PTS);

				void *pData = RK_MPI_MB_Handle2VirAddr(stFrame.pstPack->pMbBlk);
				rtsp_tx_video(g_rtsp_session, (uint8_t *)pData, stFrame.pstPack->u32Len,
							  stFrame.pstPack->u64PTS);
				rtsp_do_event(g_rtsplive);
			}
		}

		// release frame
		s32Ret = RK_MPI_VPSS_ReleaseChnFrame(0, 0, &stVpssFrame);
		if (s32Ret != RK_SUCCESS) {
			RK_LOGE("RK_MPI_VI_ReleaseChnFrame fail %x", s32Ret);
		}
		s32Ret = RK_MPI_VENC_ReleaseStream(0, &stFrame);
		if (s32Ret != RK_SUCCESS) {
			RK_LOGE("RK_MPI_VENC_ReleaseStream fail %x", s32Ret);
			}
		memset(text,0,8);
		}
	}else if(child_pid >0){
		//UART handle
		char rx_buffer[256];
		int status;
		while(1){
		int ret = waitpid(child_pid, &status,WNOHANG);
		int bytes_read=read(serial_fd,rx_buffer,sizeof(rx_buffer));
		if(bytes_read < 0){
		perror("receive error");
		}else{
			rx_buffer[bytes_read]='\0';
			//printf("RX:%s\n",rx_buffer);
			write(serial_fd,rx_buffer,sizeof(rx_buffer));
			rx_buffer_Handle(rx_buffer);
		}
		memset(rx_buffer,0,sizeof(rx_buffer));
		if(ret>0)
		{
			close(serial_fd);
			exit(0);
		}
		}

	}

	RK_MPI_SYS_UnBind(&stSrcChn, &stvpssChn);

	RK_MPI_VI_DisableChn(0, 0);
	RK_MPI_VI_DisableDev(0);

	RK_MPI_VPSS_StopGrp(0);
	RK_MPI_VPSS_DestroyGrp(0);

	RK_MPI_VENC_StopRecvFrame(0);
	RK_MPI_VENC_DestroyChn(0);

	free(stFrame.pstPack);

	if (g_rtsplive)
	rtsp_del_demo(g_rtsplive);
	SAMPLE_COMM_ISP_Stop(0);

	RK_MPI_SYS_Exit();
	// Release rknn model
    release_yolov5_model(&rknn_app_ctx);
    deinit_post_process();

	return 0;
}

void rx_buffer_Handle(char *p)
{
if(strncmp(p,"close",5)==0){
	//close demo
	exit(0);
}else if(strncmp(p,"reboot",5)==0){
	//reboot system
	system("reboot");
}else if(strncmp(p,"rkill",5)==0){
	//killall rkipc
	system("killall rkipc");
}
